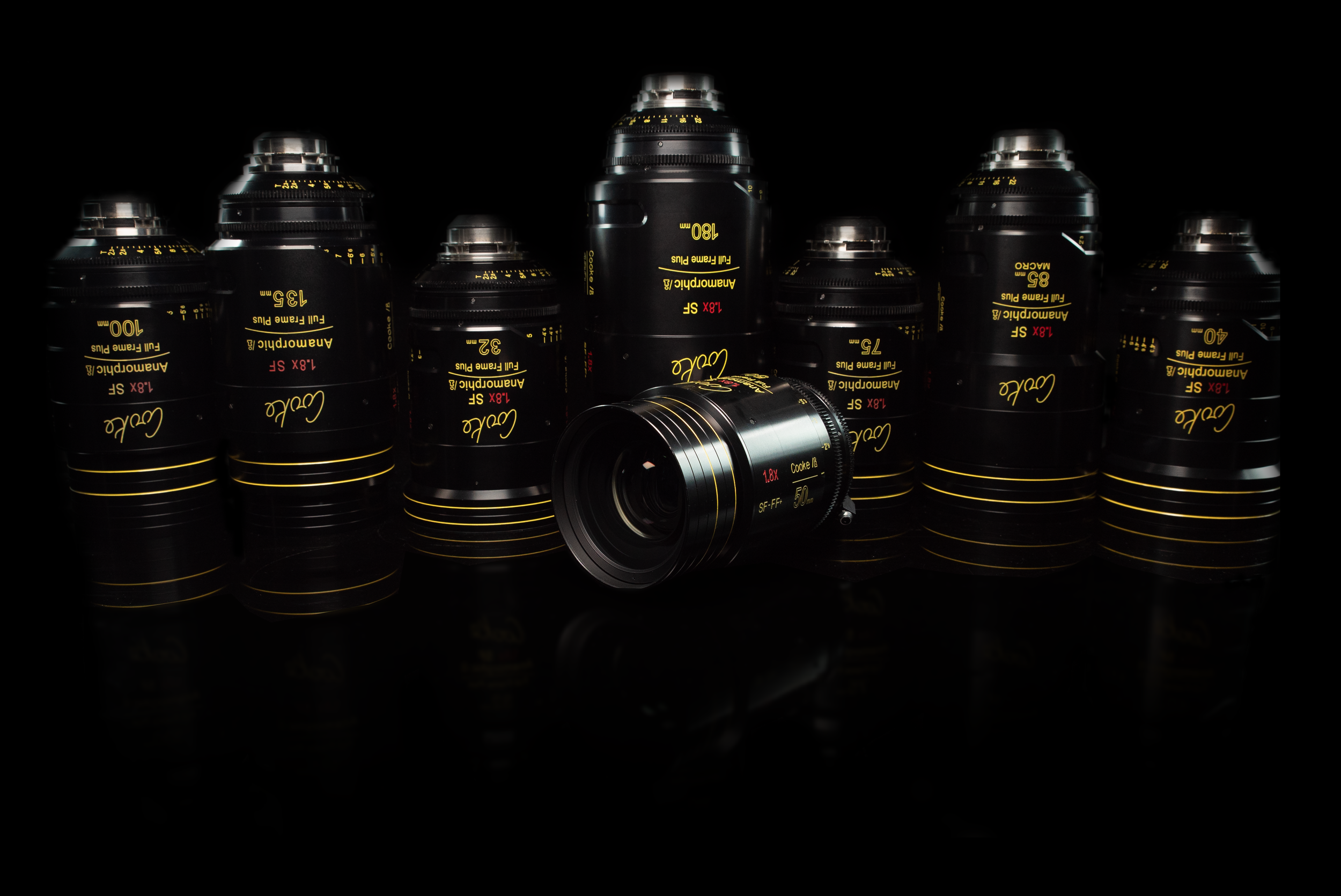

Cooke 1.8x Anamorphic/i SF Full Frame Plus Lenses
The Anamorphic/i Full Frame Plus Standard and SF (Special Flair) prime lenses represent the next logical step in the evolution of filmmaking: large format production with anamorphic characteristics, including flare and oval bokeh. Coverage circle covers a full 24 x 36 still size sensor with 1.8 squeeze. Superb optical and mechanical performance, control of flare, distortion, veiling glare and spherical aberrations at full aperture. The cam-type focus mechanism allows for smooth focus adjustments. Modular construction increases ease of maintenance and serviceability.
— LENS SPECIFICATIONS —
| FOCAL LENGTH |
SPEED | CLOSE FOCUS |
WEIGHT | LENGTH | FRONT DIAMETER |
MOUNT | COVERAGE |
|---|---|---|---|---|---|---|---|
| 32mm | T2.3 | 2' 1" | 9.3 lb | 8.1" | 136mm | PL | FF |
| 40mm | T2.3 | 2' 1" | 9.7 lb | 8.3" | 136mm | PL | FF |
| 50mm | T2.3 | 2' | 8.8 lb | 8.0" | 110mm | PL | FF |
| 75mm | T2.3 | 2' 5" | 7.7 lb | 8.1" | 110mm | PL | FF |
| 85mm Macro | T2.8 | 7" | 11.5 lb | 10.7" | 136mm | PL | FF |
| 100mm | T2.3 | 3' | 8.4 lb | 9.0" | 110mm | PL | FF |
| 135mm | T2.3 | 3' 10" | 11.0 lb | 10.7" | 110mm | PL | FF |
| 180mm | T2.9 | 5' 3" | 13.7 lb | 12.4" | 110mm | PL | FF |
