Todd-ao anamorphic
These are Los Angeles made anamorphic lenses from the 1980s. All the lenses have good sharpness and flare rather easily. Some of the focal lengths offer fast aperatures which make them very expressive lenses. Great for today's ultra sharp digital sensors. The 28mm focal length is a specialty lens that doesn’t have a fully geared focus/iris control.

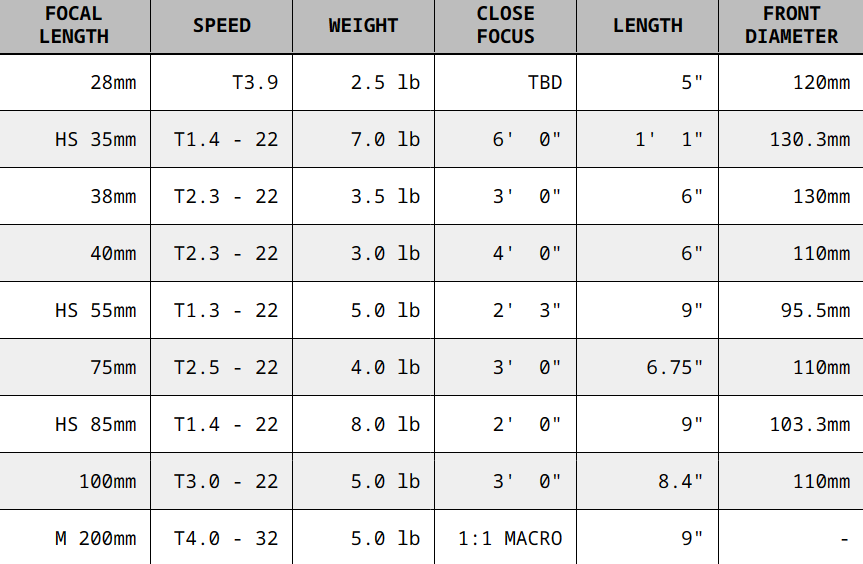

— LENS SPECIFICATIONS —
| FOCAL LENGTH |
SPEED | CLOSE FOCUS |
WEIGHT | LENGTH | FRONT DIAMETER |
MOUNT | COVERAGE |
|---|---|---|---|---|---|---|---|
| 28mm | T3.9 | TBD | 2.5 lb | 5" | 120mm | PL | S35 |
| HS 35mm | T1.4 | 6' | 7.0 lb | 1' 1" | 130.3mm | PL | S35 |
| 38mm | T2.3 | 3' | 3.5 lb | 6" | 130mm | PL | S35 |
| 40mm | T2.3 | 4' | 3.0 lb | 6" | 110mm | PL | S35 |
| HS 55mm | T1.3 | 2' 3" | 5.0 lb | 9" | 95.5mm | PL | S35 |
| 75mm | T2.5 | 3' | 4.0 lb | 6.75" | 110mm | PL | S35 |
| HS 85mm | T1.4 | 2' | 8.0 lb | 9" | 103.3mm | PL | S35 |
| 100mm | T3.0 | 3' | 5.0 lb | 8.4" | 110mm | PL | S35 |
| M 200mm | T3.5 | 1:1 MACRO | 5.0 lb | 9" | — | PL | S35 |
