Laowa Aurogon 10–50× Supermicro APO

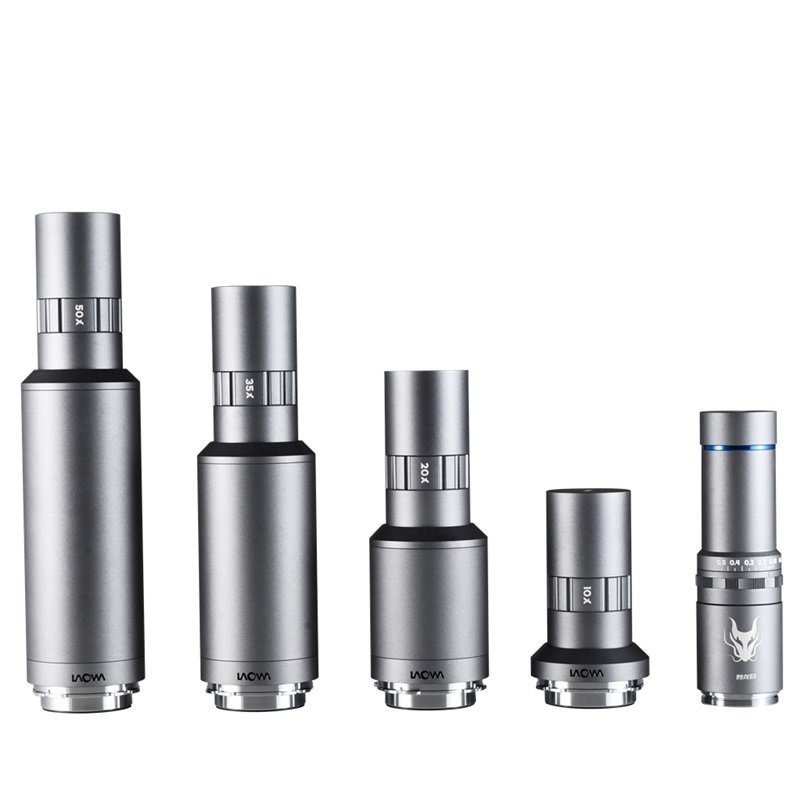

The Laowa Aurogon brings microscopic detail to the screen, with interchangeable 10×, 20×, 35× and 50× magnification tubes and full-frame coverage. Its apochromatic design controls color fringing, while an adjustable numerical aperture balances light and depth of field. A fixed 0.79-inch working distance across all four magnifications helps maintain a consistent lighting setup. Available at Camtec in PL mount.
— LENS SPECIFICATIONS —
| MAGNIFICATION | MAX. NA | WORKING DISTANCE |
WEIGHT* | TUBE LENGTH* |
OBJECTIVE DIAMETER |
MOUNT | COVERAGE |
|---|---|---|---|---|---|---|---|
| 10× | 0.5 | 0.79″ | 1.69 lb | 4.41″ | 50mm | PL | FF / S35 |
| 20× | 0.5 | 0.79″ | 1.84 lb | 6.42″ | 50mm | PL | FF / S35 |
| 35× | 0.5 | 0.79″ | 2.03 lb | 8.27″ | 50mm | PL | FF / S35 |
| 50× | 0.5 | 0.79″ | 2.20 lb | 9.96″ | 50mm | PL | FF / S35 |
*Weight combines the objective and selected tube, excluding supports. Tube length excludes the shared 6.57-inch objective. Manufacturer specifications converted to inches and pounds.
Adjustable numerical aperture: NA 0.5–0.15. Working distance is measured from the objective to the subject. Full-frame coverage: 24 × 36mm.
